Kamis, 12 September 2013

DOOR CLOSER

Dorma door closer adalah satu alat pengontrol pintu secara baik, dorma menawarkan desain teknologi yang canggih, arsitektur, dan komersial produk, dimana keduanya memiliki keindahan serta fungsional untuk memenuhi segala tuntutan dari setiap desain bangunan. Semua produk memenuhi persyaratan terbai dan dapat digunakan pada pintu logam aluminium, kayu atau kaca frameless dan frame

_____________________________________________________________________

Dorma TS 68 Rp.302.904,-
Dorma TS 68 Hold open Rp.653.400,-

  Brosure



















DATA & FUTURE
Closing force Size 2, 3, 4
Standard doors 850 mm up to 950 -1100 mm
External doors, opening outwards Non-handed

Arm assembly type Standard,Slide channel
Closing force variable at adjustment screw
Closing speed variable by valve adjustment Backcheck
Delayed action,Hold-open "
Weight in kg 1.7
Dimensions in mm Length 180
Overall depth 265
Height 43Option
1) For applications involving particularly heavy doors and doors which have to close against wind resistance, we recommend the DORMA TS 83.

_________________________________________________________________________


DORMA TS 77 Rp.196.200,-
DORMA TS 77 Hold open Rp.402.920,-



  Brosure


DATA & FUTURE
Closing force Size 2, 3, 4
Standard doors 850 mm up to 950 mm -1100 mm
External doors, opening outwards Non-handed

Arm assembly type Standard,Slide channel
Closing force variable at adjustment screw
Closing speed variable by valve adjustment Backcheck
Delayed action,Hold-open "
Weight in kg 1.7
Dimensions in mm Length 180
Overall depth 265
Height 43Option
1) For applications involving particularly heavy doors and
doors which have to close against wind resistance, we
recommend the DORMA TS 83.





_______________________________________________________________



Dorma TS 71  Rp.801.900,-
Dorma TS 71  Hold open Rp.1.128.600,-
  Brosure


DATA & FUTURE
Door Closer Closing force Size EN adjustable 2– 4
Standard doors 1100 mm
External doors, opening outwards Fire doors 1100 mm
Same design for DIN-L and DIN-R Arm Standard
Flat form Slide channel
Closing force adjustable by meansof setting screw and power shoe
Closing speed adjustable by meansof valve
Adjustable latching action By arm By valve
Backcheck Delayed action
Hold-open
Weight in kg 1.8
Dimensions in mm Length 233
Depth 42.5
Height 60
Option
For high and heavy doors, external doors,
and for doors required to close against high wind pressure,
we recommend DORMA TS 83.



_______________________________________________________________

Dorma TS 73 Rp.1.175.000,-

  Brosure

DATA & FUTURE
Door Closer Closing force Size EN adjustable 2– 4
Standard doors 1100 mm
External doors, opening outwards Fire doors 1100 mm
Same design for DIN-L and DIN-R Arm Standard
Flat form Slide channel
Closing force adjustable by meansof setting screw and power shoe
Closing speed adjustable by meansof valve
Adjustable latching action By arm By valve
Backcheck Delayed action
Hold-open
Weight in kg 1.8
Dimensions in mm Length 233
Depth 42.5
Height 60
Option
For high and heavy doors, external doors,
and for doors required to close against high wind pressure,
we recommend DORMA TS 83.


                                                            ______________________________________________________________
Dorma TS73V Rp.1.199.808,-
Dorma TS73V Hold Open Rp.1.900.800,-


  Brosure


DATA & FUTURE
Door Closer Closing force Size EN adjustable 2– 4
Standard doors 1100 mm
External doors, opening outwards Fire doors 1100 mm
Same design for DIN-L and DIN-R Arm Standard
Flat form Slide channel
Closing force adjustable by meansof setting screw and power shoe
Closing speed adjustable by meansof valve
Adjustable latching action By arm By valve
Backcheck Delayed action
Hold-open
Weight in kg 1.8
Dimensions in mm Length 233
Depth 42.5
Height 60
Option
For high and heavy doors, external doors,
and for doors required to close against high wind pressure,
we recommend DORMA TS 83.


_____________________________________________________________

Dorma TS 90,standard Rp.1.185.030,-
Dorma TS 90,Hold Open Rp.1.580.040,-
  Brosure


DATA & FUTURE
Closing force Size EN 3/4
Standard doors ≤ 1100 mm External doors,

outward opening Fire and smoke check doors Non-handed Arm assembly Slide channel
Two independent valves for closing speed adjustment2
Cushioned limit stay (mechanical) Delayed action Hold-open
Weight in kg 1.7
Dimensions in mm Length 246
Overall depth 46 Height 57

Door closer compliant with EN 1154
mark for construction products
option
1) In the case of particularly heavy doors and doors that
have to close against wind pressure, we recommend the
DORMA TS 93.

 _______________________________________________________________


Dorma TS 8300 Rp.1.00.8080,-
Dorma TS 8300 Hold Open Rp.2.255.700,-

  Brosure



DATA & FUTURE
Variable Spring EN EN closing force strength 3 – 6, 7
Standard doors 1400 mm – 1600 mm
External doors,1400 mm – outward opening 1600 mm
Fire and smoke 1400 mm check doors 1600 mm
Non-handed 2 2
Arm assembly type Standard
Flat-form,Slide channel
Closing force
variable by means of adjustment screw
Closing speed 180° - 70° ,70° - 15°

adjustable at 3 separate valves 15° - 0°
Closing speed variable by means of valve adjustment Adjustable latching action by arm
Backcheck self-regulating adjustable at valve Delayed action variable at valve
Hold-open "
Weight in kg 1.7 3.3
Dimensions in mm Length 245 293
Overall depth 46 47.5
Height 60 60
Door closer tested to EN 1154 mark for construction products
Approved to AS1905 Part1 Fire Resistant Doors
option
1) For applications involving particularly heavy or wide doors, and
doors which have to close against wind resistance, the next
highest closer size or a higher spring strength should be applied.

 _______________________________________________________________

                                             Dorma TS 93 FIRE Rp.4.600.300,-



  Brosure
DATA & FUTURE
Variable closing force Spring strength 1–5 5–7 Standard doors 1250 mm –1600 mm
External doors,1250 mm – outward opening 1600 mm
For fire and 1250 mm smoke check doors 1600 mm
Non-handed Arm assembly type Standard Slide channel
Closing force variable by means of adjustment screw
Closing speed adjustable by valve Latching speed at arm
adjustable at valve  Backcheck (BC/ÖD) adjustable at valve
Delayed action (DC/SV)
adjustable at valve Hold-open
Weight in kg 3,5 5,2
Dimensions in mm Length (L) 275 285
Overall depth (B) 253 262
Height (H) 260 271
Door closer tested to EN 1154
Hold-open devices tested to EN 1155
Door co-ordinators tested to EN 1158
mark for building products
Approved to AS1905 Part1 Fire Resistant Doors


Up date : Pebruari 2014.
Harga sewaktu-waktu dapat berubah, tanpa pemberitahuan terlebih dahulu.
______________________________________________________________
Accesoies dan system instalasi pada door closer

1.Dengan Angle breaket

 2.Dengan Hinge plate

3.Dengan Mounting Plate

4.Dengan Dropt Plate

 5.Dengan Glass door sadle plate

 6.Dengan Paraller Arm Breaket

 7.Dengan Spindel Extention
____________________________________________________________________________http://www.ivim.sk/dokumenty/dok_ivim/katalogy/dorma/TS77.pdf

FLOOR HINGE



 2 Type PERBEDAAN DORMA.
1. Dorma Floor hinge BODY ONLY terdiri :
-Semen Box, Floor hinge, Cover, Screw, Clip Cover.
di peruntukan untuk pintu kaca frameless / tanpa frame. (namun accesories berupa patch fitting mutlak di butuhkan. sebagai accesories penjepit kaca sekaligus pemegang daun pintu.

2. Dorma Floor hinge KOMPLIT SET terdiri :
-Semen Box, Floor hinge, Cover, Screw, Clip Cover.
- Accesories (Door strap, Top Cetre PT21, Inser Button, Screw )
di perutukan pintu dengan frame, alumunium, atau pintu besi, accesories yg dibutuhkan adalah accesories komplitan ( Door strap, Top Cetre PT21, Inser Button, Screw )

Catatan :
Up date : 12 Mei 2014.
Harga sewaktu-waktu dapat berubah, tanpa pemberitahuan terlebih dahulu.
_________________________________________________________________________

Dorma BTS 65 Rp.861.300,-

  Brosure

A compact and economical floor spring, only 40 mm of height and indicated for doors with weight of up to 100 kg. Presented in two power versions: EN 3 and EN 4. Closing speed can be adjusted by two independent valves.

DATA & FUTURE
Spring strength EN 2 EN 3 EN 4
Standard & up to1850 mm external doors up to 1950 mm–up to 1100 mm
Closing speed variable by valve adjustment
Backcheck ,Delayed action, Hold-open point 190°
Weight in kg, approx. 5.0 5.0 5.0
Dimensions in mm Length 306 306 306
Width 108 108 108
Height 040 040 040
Door closer tested to EN 1154
mark for building products
(products with factory-fitted
hold-open do not carry a mark)
Option
1) For applications involving particularly high or heavy doors, and doors which have to close against wind or draught conditions, the next larger closer size or the DORMA BTS 80 should be selected.
2)Max. opening 130°. Door stop necessary for doors which can open further than 130°. The economic double action


________________________________________________________________________

Dorma BTS 60 Rp.671.220,-
NO PICTURE.

  Brosure

A compact and economical floor spring, only 40 mm of height and indicated for doors with weight of up to 100 kg. Presented in two power versions: EN 3 and EN 4. Closing speed can be adjusted by two independent valves.

DATA & FUTURE
Spring strength EN 2 EN 3 EN 4
Standard & up to1850 mm external doors up to 1950 mm–up to 1100 mm
Closing speed variable by valve adjustment
Backcheck ,Delayed action, Hold-open point 190°
Weight in kg, approx. 5.0 5.0 5.0
Dimensions in mm Length 306 306 306
Width 108 108 108
Height 040 040 040
Door closer tested to EN 1154
mark for building products
(products with factory-fitted
hold-open do not carry a mark)
Option
1) For applications involving particularly high or heavy doors, and doors which have to close against wind or draught conditions, the next larger closer size or the DORMA BTS 80 should be selected.
2)Max. opening 130°. Door stop necessary for doors which can open further than 130°. The economic double action


______________________________________________________________________


Dorma BTS 84 Rp. 1.372.140,- komplit set (Door strap. PT 21)
Dorma BTS 84 Rp. 1.176.120,- Body Only

  Brosure

A compact and resistant hydraulic spring, only 40 mm of height and indicated for doors with weight of up to 100 kg. Presented in two power versions: EN 2 and EN 4. Closing speed can be adjusted by two independent valves.

DATA & FUTURE.
Spring strength EN 2 EN 3 EN 4
Standard & up to1850 mm external doors up to 1950 mm–up to 1100 mm
Closing speed variable by valve adjustment
Backcheck ,Delayed action, Hold-open point 190°
Weight in kg, approx. 5.0 5.0 5.0
Dimensions in mm Length 306 306 306
Width 108 108 108
Height 040 040 040
Door closer tested to EN 1154
mark for building products
(products with factory-fitted
hold-open do not carry a mark)
Option
1) For applications involving particularly high or heavy doors, and doors which have to close against wind or draught conditions, the next larger closer size or the DORMA BTS 80 should be selected.
2)Max. opening 130°. Door stop necessary for doors which can open further than 130°. The economic double action




________________________________________________________________________

Dorma BTS 75V  Rp.2.085.975,-


Hydraulic spring with EN 1-4 power regulation for doors up to 1100 mm of width and 120 kg of weight. Versatile: adjustable speed, mechanic back-check and interchangeable spindles.


  Brosure

DATA & FUTURE
Spring strength (EN) 3 4 6 1–4
Spring strength adjustment Standard and ≤ 1950 mm
external doors1) ≤ 1100 mm ≤ 1400 mm
Fire and smoke check doors Max. leaf weight (kg) 120
Non-handed, suitable for single and double action doors
Closing speed 175° – 0° adjustable by valve 175° – 15° ,15° – 0°
Backcheck, mechanical,Delayed action adjustable by valve (selectable alternative to the hold-open feature) Hold-open Adjustable ,Fixed 90°, Fixed 105° ,Coverplate cement box secured to floor spring
Weight in kg 7.1 3.0
Dimensions in mm Length 341 285
Width 178 182
Height 160 150
Floor spring tested to EN 1154
mark for building products
(products with factory-fitted hold-open
do not carry a CE mark)

1) For particularly heavy doors and doors which have to close
against wind resistance, we recommend the DORMA BTS 80.


_______________________________________________________________________


Dorma BTS 80 Rp.4.811.400,-

Especially designed for fire doors, the BTS 80 F has a wide choice of functions such as electro-magnetic hold-open (EMB), free swing (FLB) and a fully concealed door coordinating version for double doors (BSR)




  Brosure

DATA & FUTURE
Spring strength (EN) 3 4 6 1–4
Spring strength adjustment Standard and ≤ 1950 mm
external doors1) ≤ 1100 mm ≤ 1400 mm
Fire and smoke check doors Max. leaf weight (kg) 300
Non-handed, suitable for single and double action doors
Closing speed 175° – 0° adjustable by valve 175° – 15° ,15° – 0°
Backcheck, mechanical,Delayed action adjustable by valve
(selectable alternative to the hold-open feature) Hold-open Adjustable ,Fixed 90°
Fixed 105° ,Coverplate cement box secured to floor spring
Weight in kg 7.1 3.0
Dimensions in mm Length 341 285
Width 178 182
Height 160 150
Floor spring tested to EN 1154
mark for building products
(products with factory-fitted hold-open
do not carry a CE mark)

1) For particularly heavy doors and doors which have to close
against wind resistance, we recommend the DORMA BTS 80

PATCH FITTING

PATCH FITTING UNIVERSAL

CATATAN :
Up date : 12 Mei 2014.
Harga sewaktu-waktu dapat berubah, tanpa pemberitahuan terlebih dahulu.
________________________________________________________________________

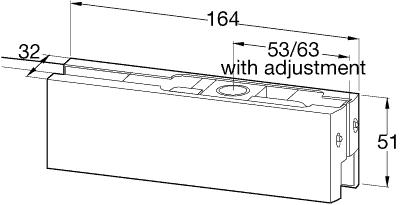

DORMA Patch Fitting
TYPE PT 10 PSS COVER Rp.523.700,-
UNIVERSAL & ON-EAZI Patch Fittings & Assemblies

  Brosure






_____________________________________________________________________

DORMA Patch Fitting
TYPE PT 20 PSS COVER  Rp.623.700,-
UNIVERSAL & ON-EAZI Patch Fittings & Assemblies

  Brosure


_______________________________________________________________________

DORMA Patch Lock
TYPE PATCH LOCK US 20 + CYLINER Rp. 1.247.400,-
UNIVERSAL & ON-EAZI Patch Fittings & Assemblies

  Brosure



______________________________________________________________________

DORMA Patch Fitting
TYPE PT 30 PSS COVER Rp. 831.600,-
UNIVERSAL & ON-EAZI Patch Fittings & Assemblies

  Brosure



_________________________________________________________________________

DORMA Patch Fitting
TYPE PT 40 PSS COVER Rp.1.144.425,-
UNIVERSAL & ON-EAZI Patch Fittings & Assemblies

  Brosure


________________________________________________________________________

DORMA Patch Fitting
TYPE PT 41 PSS COVER Rp.4.592.000,-
UNIVERSAL & ON-EAZI Patch Fittings & Assemblies

  Brosure

 ________________________________________________________________________

ARCOS PATCH FITTING.
The ARCOS product range features fittings for both interior and external toughened glass door assemblies which include: - Patch fittings - Locks - Rails- Internal hinges- Pull handlesThese all follow the same design concepts with graceful curves, ...



TYPE FITTING.
___________________________________________________________________
